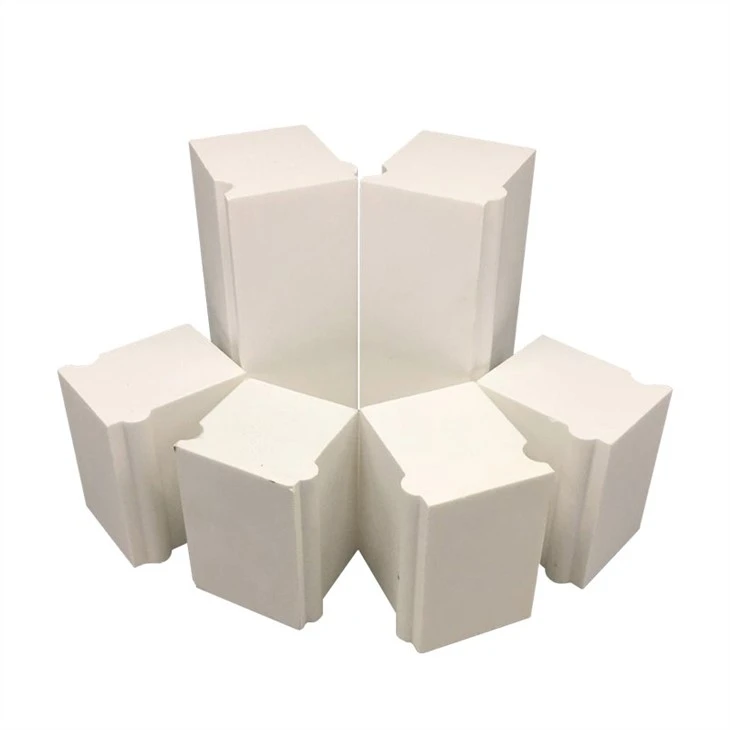

Alumina Lining Brick
MOQ：5 tons
Description
Alumina lining brick is a high purity refractory material, usually made from alumina and other additives through molding, drying and sintering processes. It has excellent high temperature performance and chemical stability, can be used at high temperature for a long time without deformation or fracture.
According to the shape, it is divided into: rectangular brick, trapezoidal brick and special-shaped brick.
Also known as ceramic lining brick, high alumina lining refractory brick, alumina lining brick, 92 porcelain lining, ceramic lining, ball mill lining, high alumina lining, microcrystalline wear-resistant alumina lining fire brick, etc.
Features
1. It is high-quality alumina with high purity, which greatly reduces the pollution of grinding materials.
2. Good wear resistance, which is 266 times that of manganese steel, effectively prolonging the service life of the equipment
3. The slurry is finely ground when matched with high-aluminum balls; it has the characteristics of corrosion resistance, high density, and high mechanical strength.
Application
Alumina lining brick can be used for grinding glazes and ceramic tiles. The product has the characteristics of high hardness, high density, low abrasion, good regularity, corrosion resistance, etc. It is used for wear-resistant lining of ball mills, and is widely used in ceramics, cement, paint, pigments, chemicals, medicine, coatings, inorganic mineral powders, etc. Industry, can effectively improve grinding efficiency, reduce grinding costs, and reduce product pollution.
Physical And Chemical Indicators
|
Properties |
ALB-92 |
ALB-92S |
ALB-95 |
|
|
Al2O3(%) |
≥92 |
≥92 |
≥95 |
|
|
Bulk density(g/cm3) |
≥3.65 |
≥3.68 |
≥3.68 |
|
|
Wear Loss(%) |
≤0.01 |
≤0.008 |
≤0.01 |
|
|
Hardness(Mohs) |
9 |
9 |
9 |
|
|
Water Absorption(%) |
≤0.01 |
≤0.01 |
≤0.01 |
|
|
Color |
white |
white |
white |
|
|
Size |
Length(mm) |
(W1) Width (mm) |
(W2) Width (mm) |
(H) Height (mm) |
|
End Flat Brick |
150 |
50 |
50 |
40/50/60/ 70/77/90 |
|
Circle Brick |
150 |
50 |
45 |
|
|
Half End Flat Brick |
75 |
50 |
50 |
|
|
Half Circle Brick |
75 |
50 |
45 |
|
|
Flake Brick |
150 |
25 |
22.5 |
|
|
Size can be customized |
||||
