Calcium Silicate Board

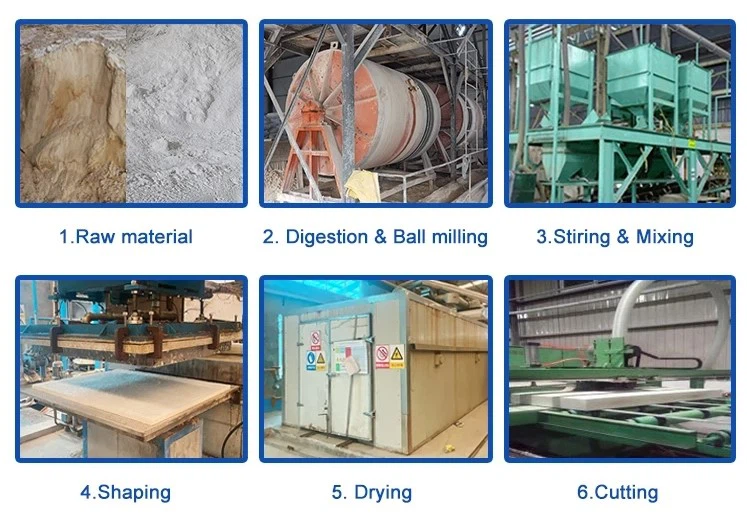

Industrial kiln backing linings require insulation boards that combine low thermal conductivity with structural rigidity to prevent furnace shell deformation under mechanical loads. Calcium silicate board provides this structural insulation. Synthesized from pure active siliceous (SiO₂ ≈ 43%) and calcareous (CaO ≈ 44%) raw materials reinforced with heat-resistant inorganic fibers, our boards are cured under high-pressure saturated steam in industrial autoclaves to form a robust tobermorite/xonotlite crystalline matrix.

Certified 100% asbestos-free, our calcium silicate boards offer operating temperature ratings of 650°C, 1000°C, and 1050°C. With thermal conductivity as low as 0.050 W/m·K at elevated temperatures and compressive strength exceeding 0.52 to 13.0 MPa, they deliver reliable thermal barrier backing behind working refractories in cement preheaters, petrochemical cracking lines, aluminum electrolytic cells, and power generation steam piping.

Every batch is tested for bulk density, bending strength, and autoclave reaction completion. Below are our verified factory specifications:

Flat Boards:
- 600 × 300 mm, 1000 × 500 mm
- Thickness: 25 mm, 30 mm, 40 mm, 50 mm, 65 mm, 75 mm, 100 mm
- Curved Pipe Sections (Shells): Two-piece split pipe insulation covers for pipe outer diameters from DN25 to DN600.
- Machined Parts: CNC-milled launder runners, floats, hot tops, and stopper pins for non-ferrous aluminum casting.

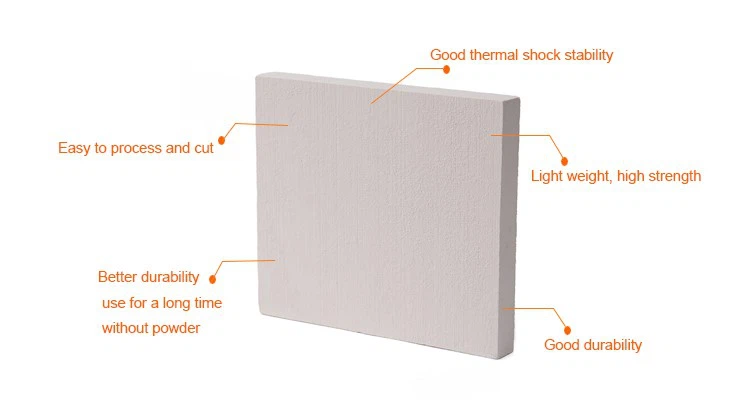

100% Asbestos-Free Compliance: Completely non-toxic and environmentally safe, meeting strict international occupational health and export environmental criteria.
Micro-Porous High Insulating Value: Nanometer-scale tobermorite pore structures suppress air convection, reducing cold-face furnace shell temperatures below 70°C.
High Compressive Resistance: Will not crush, settle, or pulverize under the expansion pressure of heavy working refractory bricks.
Easy Mechanical Workability: Cuts, saws, drills, and bevels effortlessly on-site using ordinary woodworking hand tools without fracturing.
Honest Operating Limitation: Calcium silicate board is hydrophilic; direct water wetting before heating lowers its structural insulation until dried. Always store boards under dry warehouse conditions and never use them in direct open contact with molten aluminum wash without boron nitride coating.

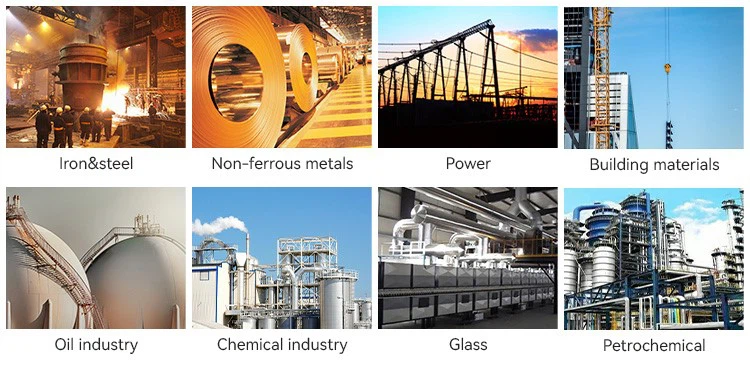

1. Cement Rotary Kilns: Tertiary air ducts, cyclone preheater cones, and smoke chamber backing behind refractory castables .
2. Iron & Steel Metallurgy: Backing insulation behind low porosity clay bricks in reheating furnaces and ladle safety layers.
3. Glass Melting Industry: Regenerator chamber wall insulation and port neck backing.
4. Power Generation & Chemical Plants: High-pressure steam pipe runs, turbine casings, and boiler secondary air insulation.

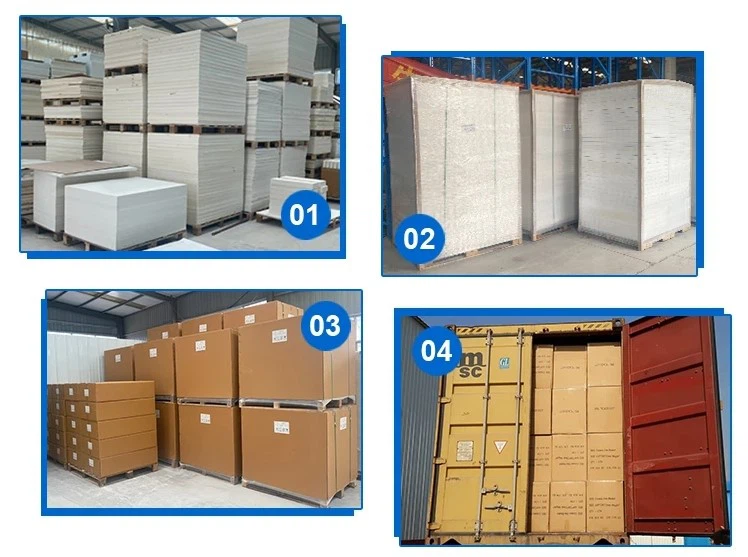

Packaging Standards: Strapped onto fumigated wooden pallets, interlaid with protective cardboard, edge-protected with composite angle boards, and wrapped in waterproof stretch film.
Minimum Order Quantity (MOQ): 1 full pallet (approx. 2.0 to 3.5 m³). Full 20'/40' container loads receive volume discounts.
Reference Price Range: \$120 – \$280 per cubic meter (m³) FOB Qingdao Port (depending on temperature rating: 650°C vs. 1000°C/1050°C and machining complexity).
Production & Dispatch Lead Time: Standard 600×300 mm panels (25/50mm thickness) dispatch in 5–7 working days; custom curved pipe shells in 10–14 working days.
Free Sample Policy: Standard 150×150 mm testing cuts provided free of charge for density, thermal conductivity, and asbestos testing (client covers express freight).

Payment Terms: 30% T/T deposit with 70% balance against Bill of Lading copy, or 100% irrevocable Letter of Credit (L/C).
Loading Port: Qingdao Port, China.

Contact our insulation engineering desk with your pipe diameter, wall thickness, or target cold-face temperature:

Email:inquiry@topower.tech
Response Commitment: Complete technical data sheet (TDS), heat loss calculation, and FOB Qingdao pricing provided within 4 hours.
