Ceramic Fiber Module

The ceramic fiber module is a new type of refractory lining product introduced to simplify and speed up the construction of the kiln and improve the integrity of the lining.They are designed to be easily installed onto the walls or floor of high-temperature furnaces, kilns, and other types of industrial equipment.

Send Inquiry

Product Introduction

Description

The ceramic fiber module has excellent chemical stability; excellent thermal stability; excellent elasticity. The product is white in color and regular in size. It can be directly fixed on the anchor nails of the steel plate of the industrial kiln shell. After the furnace lining is built, the expansion of the ceramic fiber foldable module makes the furnace lining seamless and can compensate for the fiber furnace lining Shrink to improve the thermal insulation performance of the fiber lining, and the overall performance is good; excellent thermal stability and thermal shock resistance; It is easy to install, and the anchors are set on the cold surface of the wall lining, which can reduce the requirements for refractory anchor materials.

Features

Ceramic fiber module has a good fire-resistant and heat-insulating effect, which improves the integrity of the fire-resistant and heat-insulating kiln and promotes the progress of kiln masonry technology. And also has the following features：

Low bulk density, low thermal conductivity

Resistance to thermal shock and airflow

High mechanical strength, built-in anchors, good safety performance

The installation is simple, the furnace lining forms a seamless whole after installation, and the thermal insulation effect is good

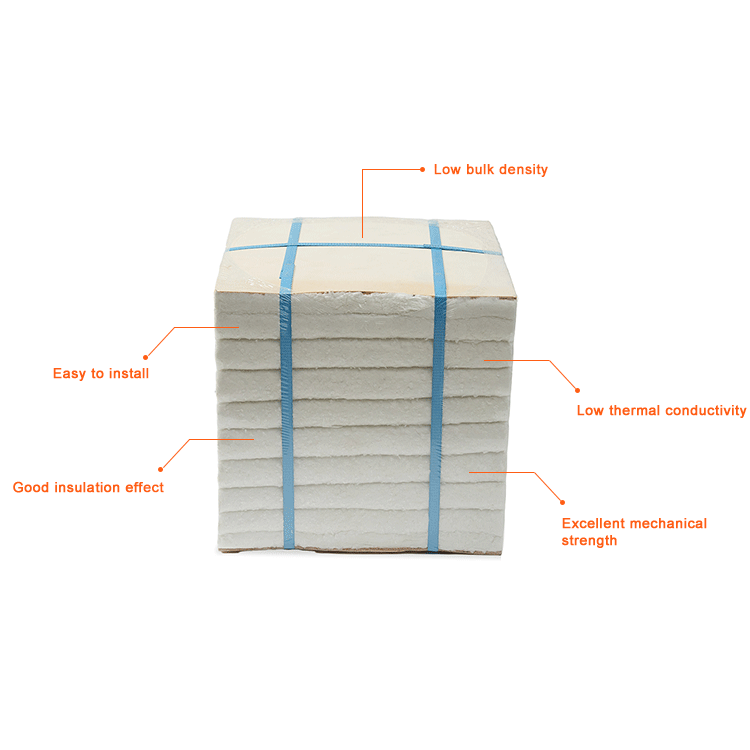

ceramic fiber module

Application

Application of ceramic fiber module：

Ceramic industry: tunnel kiln, shuttle kiln, roller kiln

Petrochemical industry: atmospheric furnace, conversion furnace, coking furnace, cracking furnace, heating furnace, flue, etc.

Iron and steel industry: ladle cover, heating furnace, annealing furnace, bell furnace, walking furnace, hot blast pipe and pipe, etc.

Environmental protection and energy saving industry: waste incinerator, RTO exhaust gas treatment furnace, SCR environmental protection catalytic furnace, etc.

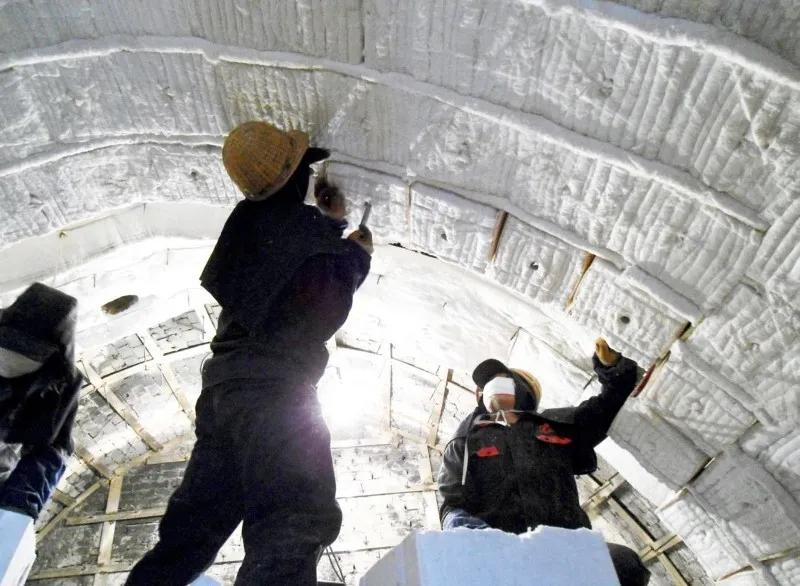

1-1ZQ21G14J44

Physical And Chemical Indicators

Brand Properties		STD Module	HP Module	HZ Module	PC Module
(%) Chemical Composition	Al₂O₃	44	45	34	71
	SiO₂	52	54	50	27
	Fe₂O₃+TiO₂	1.0	0.5	0.5	-
	ZrO₂	-	-	15	-
	K₂O+Na₂O+Fe₂O₃	1.0	0.2	0.2	0.2
Bulk Density (kg/m³)		128-240	128-240	128-240	128-196
Specification Temp. (℃)		1260	1350	1430	1600
(%) Linear Shrinkage after Heating		1000℃X24h≤2.5	1000℃X24h≤2.5	1000℃X24h≤3.5	1400℃X24h≤1.0
(w/m.k) Thermal Conductivity	400℃	0.090	0.101	0.118	0.09
	500℃	0.119	0.120	0.149	0.133
	600℃	0.152	0.175	0.172	0.160
Size(mm)		LENGTH：250-600 WIDTH：200-400 THICKNESS：200-400			LENGTH：100-600 WIDTH：150-300 THICKNESS：200-300

Packing And Shipping

Packaging according to safety sea-exporting packing Standard
Dispatch : loading the finished packing material at factory by container Door toDoor
By 25kg kraft paper bags+sea fumigated wooden pallets
