JM insulating firebrick
MOQ: 5 tons
Description

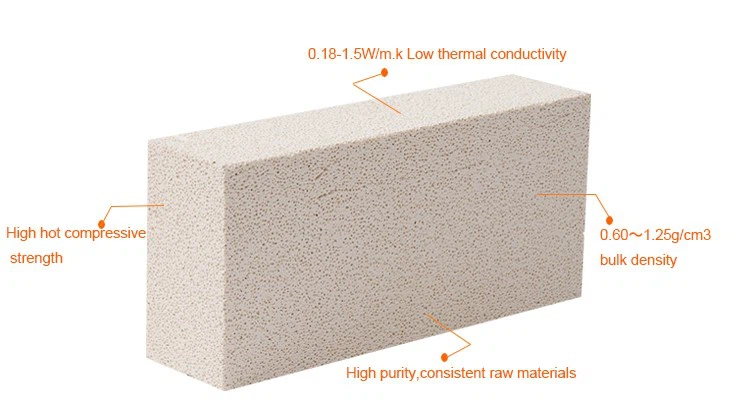

JM insulating firebrick puts alumina as main materials. After extrusion molding, they are fired at high temperature. Each surface of the brick is mechanically polished to the required size. Insulating firebricks can reduce the cost of the foundation, reduce the cross-section of the frame, and save reinforced concrete can significantly save the comprehensive cost of the building. It's a necessary refractory bricks for us to use in various kinds of furnace such as chemical industry,glass foundry and so on. These JM insulating firebrick does well in energy saving and heat preservation. The tolerance of temperature is from 1300 to 1400 degrees.
Features
JM insulating firebrick has a high heat preservation effect, strong durability, high mechanical intensity, great energy-saving insulation, and high cold crushing strength.
Application
JM insulating firebrick can be used to replace lightweight burner bricks, high temperature furnace burner brackets, and refractory linings or insulation layers in addition to being directly placed to such surfaces. widely applicable as a backup insulation material for high temperature processing of metals, petrochemicals, and ceramics or in hot face refractory lining.
Physical And Chemical Indicators
|
Brand |
JM-23LD |
JM-23 |
JM -26 |
JM -28 |
JM -30 |
JM -32 |
|
|
Classification temperature (℃) |
1300 |
1300 |
1400 |
1500 |
1550 |
1600 |
|
|
Bulk Density (g/cm3) |
0.55 |
0.6 |
0.8 |
0.9 |
1.0 |
1.1 |
|
|
Cold Crushing Strength (MPa) |
1.0 |
1.2 |
1.8 |
2.5 |
3.3 |
3.5 |
|
|
Modulus of rupture (MPa) |
1.0 |
1.0 |
1.7 |
2.3 |
3.1 |
3.2 |
|
|
(CT℃X24h) Permanent Linear Change (%) |
-0.4 |
0.6 |
0.6 |
0.8 |
0.9 |
1.01 |
|
|
@ 1,100℃ Thermal Linear Expansion(%) |
0.50 |
0.50 |
0.52 |
0.52 |
0.53 |
0.7 |
|
|
Thermal conductivity (W/m.k) |
350℃ |
0.14 |
0.18 |
0.27 |
0.32 |
0.38 |
0.49 |
|
|
400℃ |
0.15 |
0.20 |
0.29 |
0.34 |
0.40 |
0.5 |
|
|
600℃ |
0.17 |
0.24 |
0.32 |
0.36 |
0.42 |
0.51 |
|
(%) Chemical Analysis |
Al2O3 |
38 |
40 |
56 |
67 |
73 |
77 |
|
|
Fe2O3 |
0.8 (CaO12%) |
1.0 |
0.8 |
0.7 |
0.7 |
0.5 |
|
Main Applications |
Ceramic Roller Kiln ReheatingReheating Furnace Blast Furnace Petrochemical FurnaceGeneral Industrial Furnace etc.
|
||||||
Productive Process
1.Raw material quality control including physical and chemical testing.
2.Crushing and grinding of bulk raw materials.
3. According to customer data sheet required to mixing Raw Material.
Pressing or shaping the green brick depend on different raw material and brick shape.
4.Put the bricks into the tunnel kiln to burning.
5.Grind the bricks.
6.The quality control department will inspect the finished refractory bricks random.

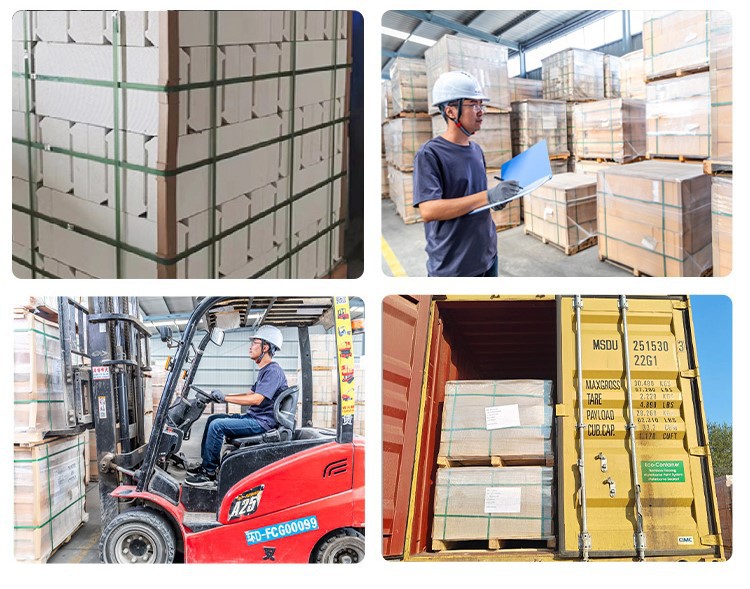

Packing And Shipping
Packaging according to safety sea-exporting packing Standard
Dispatch : loading the finished packing material at factory by container Door toDoor
By sea fumigated wooden pallet + plastic belt + plastic film wrap.
