Mullite bricks are high-alumina refractories that primarily contain the crystal phase mullite (3Al2O32SiO2). The alumina content typically ranges from 70% to 80%. Bricks made of the refractory material mullite have a high refractoriness that can exceed 1790°C.

Send Inquiry

Product Introduction

Description

Mullite bricks, made from synthetic fused mullite and sintered mullite, are formed by hand and fired in high-temperature furnaces. Mullite Bricks are made with mullite as the main raw material and are fired at high temperatures. It has a higher refractoriness up to 1790°C, and its apparent initial softening temperature is 16001700°C. It has a cold crushing strength of 70260MPa. It is thermally shock resistant.

mullite insulation brick

Features

Mullite Bricks have a low thermal expansivity, a high thermal conductivity, a high thermal shock resistance, and a high high-temperature strength. They can withstand high temperatures for an extended period of time without softening. They can withstand acid erosion, but they cannot function in an oxidizing environment.

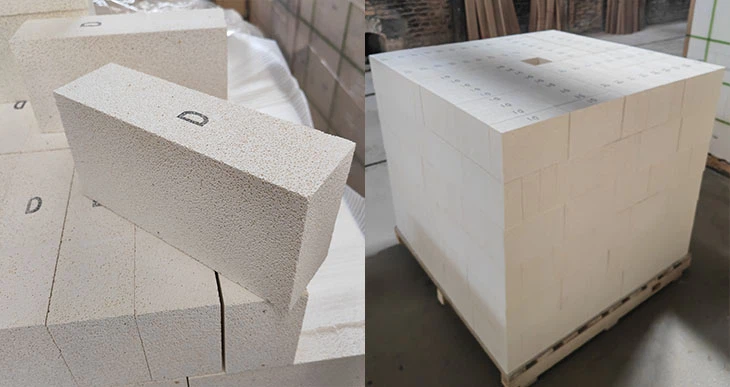

mullite brick

Application

Mullite bricks have a variety of excellent properties, including high temperature resistance, good thermal shock resistance, high thermal conductivity, and more, which make it a popular choice for use in blast furnaces, hot blast stoves, and glass melting furnaces.

Physical And Chemical Indicators

Item	Fused Corundum Brick	Corundum Mullite Brick	Corundum Mullite Brick	Corundum Mullite Brick
Al2O3%≥	99	95	90	80
SiO2% ≤	0.3	3	9	18
Fe2O3%≤	0.2	0.2	0.4	0.4
Bulk density g/cm³	3.2	3	2.9	1.8-2.7
Normal temperature compressive strength Mpa≥	75	100	100	60
Refractoriness ℃	1790	1790	1790	1790
Load softening point℃ 0.2MpaKD ≥	1700	1700	1700	1650
*Reburn line changes(%) 16003h ≤**	0.2	0.2	0.2	0.3

	Item	Synthetic Mullite Brick				High Purity Rebonded Electrically Fused Mullite Brick		High Performance Brick
		MUSB-70		MUSB-75		MUFB-75		MUFB-77.7
		Pressing	Slip Casting	Pressing	Slip Casting	Pressing	Slip Casting	Pressing	Slip Casting
Chemical Composition	Al2O3(%)	70	70	75	75	75	75	77.7	77.7
	SiO2(%)	28	28	24	24	24	24	22	22
	Fe2O3(%)	0.3	0.3	0.3	0.3	0.2	0.2	0.1	0.1
Physical Properties	Apparent Porosity(%)	15	21	17	21	13	20	12	20
	Bulk Density(g/cm³)	2.6	2.4	2.7	2.5	2.7	2.55	2.75	2.55
	Cold Crushing Strength (Mpa)	100	75	100	80	80	80	60	70
	Refractoriness Under Load (℃)	1650	1620	1680	1650	1700	1700	1700	1700
