Fire Sleeve

In high temperature environments, cable and hose failures can shut down entire production lines in minutes. Fire Sleeve is a next-generation thermal-shield solution engineered for the steel smelting, non-ferrous, power-plant and shipyard sectors. With an inner diameter range of 6–130 mm and a flexible 3–5 mm wall, it slides easily over existing lines, delivering immediate 1,650 °C ambient heat protection and 560 °C continuous direct protection without bulk or weight penalties. MOQ≥1 meters
Send Inquiry
Product Introduction
Description

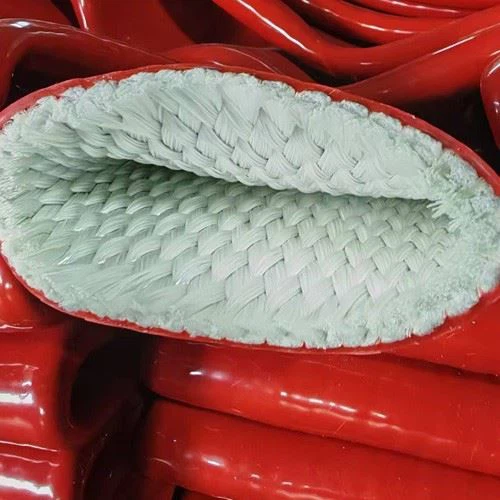

Available in inner diameters ranging from 6mm to 130mm, and thicknesses between 3mm and 5mm, the Fire Sleeve is adaptable to a wide range of equipment. It is supplied in roll lengths of 10m, 20m, 25m, or 30m, packed securely in PE bags. The sleeve features a tightly woven glass fiber inner layer for insulation and a thick silicone outer coating that protects against oil, water, and contaminants. An included fire tape ensures sealed ends for optimal thermal containment. Color options include red as standard, with customization available upon request.



Features



High Heat Resistance: Withstands up to 1650℃ ambient heat and 560℃ continuous flame.

Water and Oil Resistant: Designed to repel industrial liquids, preventing corrosion or short-circuits.

Easy Installation: Flexible structure allows for bending around corners and tight spaces.

Comprehensive Sealing: Fire tape seals sleeve ends to block heat and debris infiltration.

Durability: Excellent tear strength, voltage insulation, and abrasion resistance.



Application



Primarily used in steel mills, aluminum plants, and power generation sites, the Fire Sleeve provides essential protection for hydraulic hoses, electric wiring, and fuel lines. Its heat shielding capability helps prevent fire hazards, insulation loss, and system failure. It is also suitable for use in shipyards and automotive assembly lines, especially in sections exposed to radiant heat or hot fluid transfer.



Physical And Chemical Indicators



Inside dia.(mm) Inside dia.(inch) wall thickness (mm) Tolerance(mm) roll length(m) ctn size(cm) No./ctn(m) G.W.(kg)
Φ6 1/4 1.5 ±0.15 50 47*47*10 100 22
Φ8 5/16 1.5 ±0.15 50 47*47*10 100 24.5
Φ10 3/8 2 ±0.20 25 47*47*10 100 28
Φ11 7/16 2 ±0.20 25 47*47*10 100 29.5
Φ13 1/2 2 ±0.20 25 47*47*10 100 30.2
Φ16 5/8 2 ±0.20 25 47*47*10 50 16.5
Φ19 3/4 2 ±0.20 25 47*47*10 50 20.4
Φ22 7/8 2 ±0.20 25 47*47*10 50 21.5
Φ25 1 2 ±0.30 25 47*47*10 50 24.5
Φ29 1 1/8 2 ±0.30 25 47*47*10 50 25.5
Φ32 1 1/4 2 ±0.30 25 47*47*10 50 27.5
Φ35 1 3/8 3 ±0.30 25 47*47*15 50 28.5
Φ38 1 1/2 3 ±0.30 25 47*47*15 50 34
Φ40 1 3/5 3 ±0.30 25 47*47*15 50 34.5
Φ41 1 5/8 3 ±0.30 25 47*47*15 50 35
Φ45 1 3/4 3 ±0.30 25 47*47*15 50 36
Φ48 1 7/8 3 ±0.30 25 47*47*15 50 37
Φ51 2 3 ±0.35 25 52*52*20 50 38.2
Φ55 2 1/5 3.5 ±0.35 20 52*52*20 20 20.5
Φ57 2 1/4 3.5 ±0.35 20 52*52*20 20 21
Φ60 2 3/8 3.5 ±0.35 20 52*52*20 20 23.5
Φ64 2 1/2 3.5 ±0.35 20 52*52*20 20 24
Φ65 2 3/5 3.5 ±0.35 20 52*52*20 20 24.5
Φ70 2 3/4 3.5 ±0.40 20 52*52*20 20 27.5
Φ76 3 4 ±0.40 20 52*52*20 20 28.2
Φ80 3 1/5 4 ±0.40 20 52*52*20 20 32.5
Φ83 3 1/4 4 ±0.40 20 52*52*20 20 33.2
Φ85 3 3/8 4 ±0.40 20 52*52*20 20 33.8
Φ89 3 1/2 4 ±0.50 10 52*52*20 10 18.5
Φ90 3 9/16 4 ±0.50 10 52*52*20 10 19
Φ95 3 3/4 4 ±0.50 10 52*52*20 10 19.5
Φ102 4 5 ±0.50 10 52*52*20 10 20.2
Φ110 4 1/3 5 ±0.50 10 54*54*20 10 22
Φ114 4 1/2 5 ±0.50 10 54*54*20 10 23.8
Φ120 4 4/5 5 ±0.50 10 54*54*20 10 26.8
Φ127 5 5 ±0.60 10 54*54*20 10 28.5



Fire Sleeves Packing



10m /20m /25m /30m meters per roll per PE bag;
Packing size: 47x47x10cm; 47x47x15cm;50x50x20cm


fire sleeve packing





FAQ



Q1: What temperature can the fire sleeve handle?
A1: It withstands up to 1650℃ ambient heat and 560℃ continuous direct flame.

Q2: Is the sleeve waterproof and oil-resistant?
A2: Yes, the silicone outer layer repels both water and industrial oils.

Q3: Can it be used outdoors or in corrosive environments?
A3: Absolutely, it offers anti-corrosion performance and UV resistance.

Q4: Do you offer custom lengths or diameters?
A4: Yes, we support OEM orders with customized sizes and packaging.
